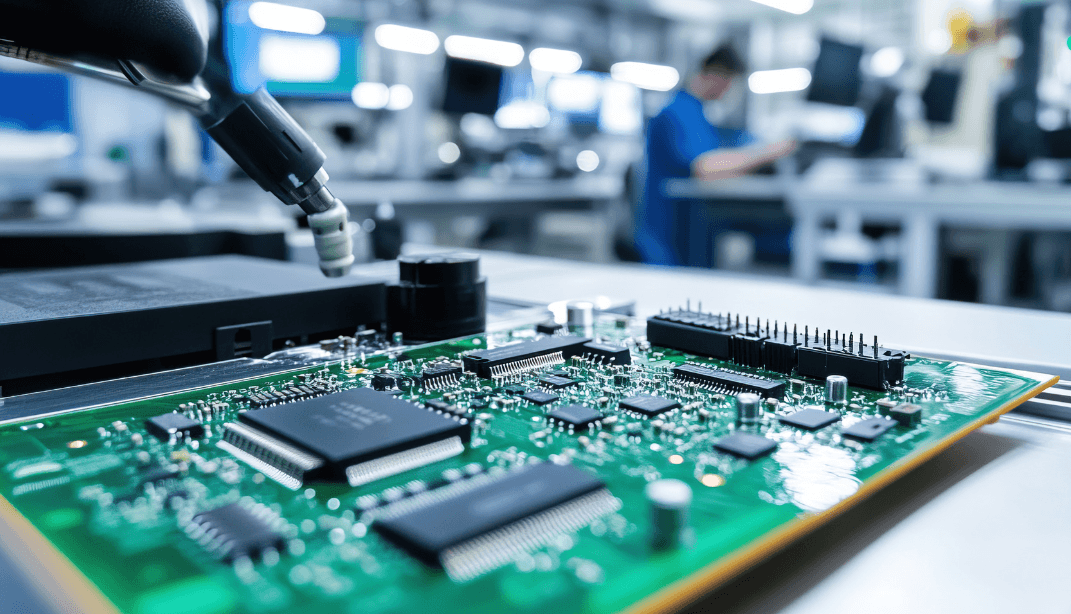

The cost of PCB assembly is shaped by more than the unit price on a quotation. Design complexity, component availability, material choice, assembly method, testing requirements and delivery expectations all affect the final cost.
This matters because many costs are decided before production starts. A layout that is difficult to assemble, a hard-to-source component, or an unrealistic deadline can increase the price before the first board reaches the line.
Understanding these cost drivers makes it easier to compare suppliers, reduce avoidable spend and protect product reliability.
Board Complexity Can Increase Costs Quickly
Board complexity increases cost because it adds manufacturing time, precision requirements and inspection effort.
A simple board with fewer layers and generous spacing is usually easier to produce. A dense, multi-layer board requires tighter process control and more careful handling.
Common complexity factors include:
- Layer count
- Board size
- Component density
- Fine-pitch components
- Routing constraints
- Thermal requirements
Higher layer counts can increase fabrication effort. Dense layouts may require more accurate placement and closer inspection. Larger boards use more material and can need additional handling during assembly.
The key point is not that complex boards are wrong. Many products need compact, high-performance layouts. The risk comes when complexity is added without a clear functional reason.
A useful design question is: does this feature improve the product, or does it simply make the board harder to manufacture?
Component Choice Has a Bigger Effect Than Many Expect
Component choice can have a major impact on PCB assembly pricing because every part carries cost, availability and handling implications.
A low-cost component is not always the cheapest option in practice. If it has poor availability, limited suppliers or a long lead time, it can increase sourcing effort and delay production.
Key sourcing factors include:
- Lead times
- Minimum order quantities
- Supplier availability
Obsolete or specialist components are often more expensive to source. They may also need extra checks to avoid counterfeit or non-compliant parts. High-spec components can also add unnecessary cost if the application does not need their full performance.
This is where early design review helps. Standard, widely available components often support more predictable PCB assembly quotations and smoother production planning.
The best choice is not always the cheapest part. It is the part that meets the requirement, can be sourced reliably and does not create avoidable production risk.
Tight Tolerances Often Require Greater Precision
Tight tolerances increase cost because they require more control during manufacturing and inspection.
Tolerances define how much variation is acceptable in placement, alignment, drilling, soldering and finished assembly. Some products need tight tolerances for performance, safety or mechanical fit. Others specify tight limits by habit rather than necessity.
Greater precision can mean:
- More advanced equipment
- Slower setup
- Extra inspection
- Higher operator involvement
- Increased risk of rejected boards
This does not mean tight tolerances should be avoided. It means they should be justified.
If a tolerance protects signal performance, mechanical fit or thermal behaviour, it may be essential. If it does not affect function, relaxing it can reduce unnecessary manufacturing pressure.
Good cost reduction in PCB design often starts by separating genuine engineering requirements from over-specified details.
Material Selection Influences More Than Performance
Material selection affects cost, durability, thermal behaviour and the conditions a board can withstand.
Standard FR-4 suits many applications and is often cost-effective. More demanding products may need high-performance laminates, flexible materials or specialist substrates for heat, movement, frequency or environmental exposure.
Material decisions can affect:
- Raw material cost
- Processing requirements
- Thermal performance
- Signal integrity
- Mechanical durability
- Long-term reliability
The commercial decision is usually a trade-off. A cheaper material may reduce upfront cost but increase failure risk if the product faces heat, vibration, moisture or repeated movement.
For applications involving bending, compact routing or movement, a flexible PCB may be the right technical choice. It may cost more than a standard rigid board, but it can solve design and reliability issues that a rigid board cannot.
The aim is not to choose the cheapest material. It is to choose the lowest-risk material that fits the product’s real operating conditions.
Testing and Inspection Requirements Add to the Total Cost
Testing and inspection add cost, but they also reduce the risk of expensive failures later.
Every inspection step takes time, equipment and skilled labour. However, skipping or reducing testing can push defects further down the production chain, where they are harder and more expensive to fix.
Common testing and inspection methods include:
- Automated Optical Inspection (AOI)
- X-ray inspection
- Functional testing
AOI checks visible placement and soldering issues, X-ray inspection is used for hidden joints, such as ball grid arrays, and functional testing confirms whether the assembled board works as intended.
The right level of testing depends on the application. A prototype may need a different approach from a production run. A board used in a critical system may need more rigorous inspection than a low-risk product.
Testing should be viewed as part of the value of assembly, not simply an added cost. It protects reliability, reduces returns and gives teams greater confidence before products move into use.
Lead Times and Supply Chain Pressures Affect Pricing
Lead times affect pricing because urgency limits sourcing and production options. A planned build gives the assembly partner time to source components, schedule production and manage logistics efficiently. A last-minute build can require expedited purchasing, priority scheduling and faster transport, all of which can increase cost.
Supply chain pressures can also affect electronics manufacturing costs. Component shortages, allocation limits, shipping delays and price movement all influence the final figure.
Common cost pressures include:
- Urgent sourcing
- Broker purchasing
- Short-notice production slots
- Expedited shipping
- Component substitutions
- Stock availability issues
In practice, many avoidable costs come from late changes. A design revision, volume change or delayed approval can disrupt procurement and force more expensive decisions.
The earlier a supplier understands the full project requirement, the more options they have to control cost.
Design Issues Can Create Avoidable Manufacturing Costs
Poor design for manufacture can create costs that should never have reached production.
A board may work electrically but still be difficult, slow or expensive to assemble. This is where design for manufacture, often called DFM, becomes important.
Common issues include:
- Misaligned footprints
- Inadequate spacing
- Poor component orientation
- Non-standard parts
- Thermal issues
- Difficult access for inspection or rework
These problems can lead to placement errors, solder defects, rework, scrap and delays. They also make quotations less predictable because the manufacturer has to allow for extra risk.
To reduce avoidable cost:
- Arrange an early design review
- Involve the assembly provider before production
- Use standard components where practical
- Check layout decisions against manufacturing limits
- Avoid unnecessary design complexity
Good DFM does not remove engineering ambition. It makes the design easier to build consistently.
Assembly Method Plays a Part in Overall Cost
The assembly method affects cost because it changes the balance between automation, labour and setup time.
Surface mount technology is usually suited to compact layouts and automated placement. It works well for higher volumes because setup costs can be spread across more boards.
Through-hole assembly often needs more manual handling. It can be valuable for connectors, larger components or parts exposed to mechanical stress, but it may increase labour time.
Mixed-technology boards use both methods. They can be necessary, but they usually add handling steps and process complexity.
Cost considerations include:
- Production volume
- Component type
- Manual labour required
- Setup time
- Inspection needs
- Mechanical strength requirements
The right method depends on the product. A design should not use through-hole components where surface mount parts would perform just as well, but it should not remove through-hole strength where the product genuinely needs it.
Cost-effective assembly comes from matching the method to the function.
Volume Changes the Cost Per Unit
Production volume affects cost because setup, programming and process preparation are spread across the number of boards produced.
A small batch usually has a higher unit cost because setup work still needs to happen. A larger run may reduce the unit price, but it can increase the total upfront spend and stock risk.
This is important for prototypes and early-stage products. Ordering too few boards may make each unit expensive. Ordering too many before the design is proven can create waste if revisions are needed.
A practical approach is to align volume with project stage:
- Prototype runs should focus on learning and validation
- Pilot runs should test repeatability and sourcing
- Production runs should focus on efficiency and consistency
The lowest unit price is not always the best decision if the design is still changing.
PCB Assembly Quotations Depend on the Quality of Information Supplied
A PCB assembly quotation is only as accurate as the information provided.
Manufacturers need clear design files, a complete bill of materials and realistic delivery expectations to price work properly. Missing or unclear information creates uncertainty, and uncertainty often increases quoted cost.
Useful quotation information includes:
- Gerber or manufacturing files
- Bill of materials
- Assembly drawings
- Testing requirements
- Preferred components or approved alternatives
- Expected volumes
- Target delivery dates
- Any special handling or packaging needs
Incomplete data can lead to assumptions. Those assumptions may later change the price, timeline or production plan.
Providing complete information early helps the supplier identify risks, recommend changes and quote with more confidence.
Working With the Right PCB Assembly Partner Can Improve Value
The right PCB assembly partner helps reduce total cost, not just unit price.
A low quote can become expensive if it leads to delays, rework, poor communication or quality issues. A better-value partner helps identify problems early, supports component decisions and keeps production aligned with the project goal.
Look for a supplier that can support:
- Design review
- Component sourcing advice
- Clear quotation breakdowns
- Testing recommendations
- Reliable communication
- Repeatable quality control
For cost-aware teams, the best supplier is often the one that prevents avoidable expense before it happens.
Altimex supports customers across PCB assembly, sourcing and related electronic manufacturing requirements. If you are reviewing a new design, comparing PCB assembly cost options or planning your next production run, contact us to discuss the most practical route forward.
The cost of PCB assembly depends on design, components, materials, tolerances, testing, lead times, volume and supplier capability.
Some costs are unavoidable because they protect performance and reliability. Others come from late decisions, poor design for manufacture or unclear project information.
The strongest cost control comes from early planning. When engineering, procurement and manufacturing decisions are aligned, teams can reduce avoidable spend without compromising the finished product.
