While PCB assembly automation can offer tremendous advantages, it is not always the right choice. Deciding between manual vs automated PCB assembly depends on several key factors, from production volume and component complexity to design stability. Understanding when to automate PCB assembly is critical to balancing cost, quality, and flexibility.
This article will explore the situations where automated PCB assembly makes sense, and when it doesn’t.
Should: High Volume Production
For starters, when manufacturing thousands of units, automated assembly (Surface Mount Technology (SMT)) provides significant cost savings and faster, more efficient production compared to manual labour. When you’re producing consistent runs of 500-1,000 units per month, the upfront investments in pick-and-place machines, reflow ovens, and automated optical inspection (AOI) systems start paying for themselves through lower costs per-unit and much faster throughput. This is where PCB manufacturing automation becomes commercially viable.
The time difference is also significant, in that a skilled technician might be able to place 30-50 components per hour manually, whilst an SMT line can place 5,000-15,000 components per hour with precision down to fractions of a millimetre, cutting lead times considerably.
Should: High Density and Small Components
Because human vision and dexterity have natural limits, even experienced technicians sometimes struggle to achieve reliable placement accuracy below 0.4mm pitch, and there is also the risk of misalignment, bridging, or component damage. Therefore, automated machines are essential for handling tiny components that are too small for precise human placement.
So, electronics assembly automation becomes essential as modern pick-and-place machines equipped with vision systems can handle these miniature components with placement accuracy of ±0.025mm or better, maintaining consistent performance across thousands of placements. This precision extends to high-density boards where component spacing leaves minimal room for error.
Automated systems also apply constant pressure during placement, preventing the mechanical damage that can occur when technicians handle delicate components with tweezers.
Should: Consistency and Quality
One of the biggest advantages of automated PCB assembly is consistency. Automated assembly reduces human error, ensuring consistent quality across large batches and better, more reliable solder joints. When quality requirements are rigorous, particularly for industries such as medical devices, automotive, or aerospace where failures can carry serious consequences, automation provides the repeatability needed to meet certification standards.
Automated solder paste application through stencil printing delivers precise, uniform deposits on every pad, and reflow ovens with programmable temperature profiles ensure every board experiences identical heating and cooling curves, optimising solder wetting and intermetallic bond formation. This thermal consistency is difficult to replicate with manual soldering, where technique variations between operators, or even fatigue, can affect joint quality.
Automated systems also integrate inline inspection technologies like AOI and X-ray that catch defects immediately.
Should: Complex Designs
For boards with intricate, multi-layer designs, automation ensures precision that is hard to replicate by hand. Complex designs often require specific component placement order to, for example, avoid shadowing during reflow or to accommodate components with different thermal profiles. Automated equipment handles these requirements through programmable recipes that ensure each board follows the exact same assembly sequence, eliminating the potential errors that come with manual interpretation of complex assembly drawings.
Should not: Prototyping and Low Volume

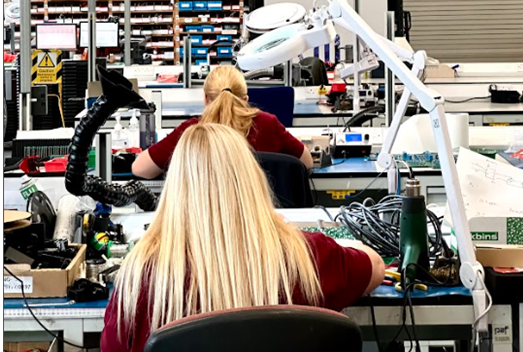

Now, moving on to when PCB assembly should not be automated, for small batches or initial prototypes, low volume PCB assembly is typically faster and more cost-effective when carried out manually as the significant upfront investment in setup, programming, and tooling required for PCB assembly automation cannot be justified for a handful of boards.
Manual assembly by an experienced technician will almost always be faster to get started and cheaper overall in these scenarios. Also, it is worth mentioning that prototyping presents an additional challenge due to the fact that designs are actively evolving between revisions. Therefore, it is important to have a skilled human assembler who can adapt to last-minute component changes with minimal disruption, instead of an automated line which would introduce costly and time-consuming delays.
Should not: Frequent Design Changes
Following on from this, beyond the prototyping phase, frequent design changes can persist well into a product’s development lifecycle, making automation a poor fit even when it comes to slightly larger runs.
When engineering teams are responding to customer feedback, addressing performance issues, or focussing on regulatory compliance, the bill of materials and board layout can shift substantially from one batch to the next. Each change can lead to downtime or re-programming, which can eat into any efficiency gains automation might have otherwise offered.
In such cases, flexibility outweighs the throughput advantages of high-volume PCB assembly systems.
Should not: Unique or Specialised Parts
Last of all, certain components simply cannot be accommodated by automated assembly equipment. For instance, components that are heat sensitive may be damaged by the controlled yet intense thermal profiles of reflow ovens, requiring careful hand-soldering instead. Also, components that are non-standard in shape often fall outside the physical tolerances of pick-and-place machines which are optimised for standard, predictable form factors.
Similarly, components which require precise manual alignment demand a level of tactile judgement that automated systems cannot replicate. In these cases, manual assembly is not just a cost-saving choice, but a necessity.
Conclusion
In conclusion, PCB assembly automation excels in high-volume, high-precision environments, while manual assembly remains the better choice for flexible, low-volume, or specialised work. Once you are able to understand these distinctions, you will be able to choose the approach that suits your production needs the best.
