What Is Consigned PCB Assembly?
Consigned PCB assembly is a manufacturing service where the customer supplies some or all of the printed circuit boards, electronic components and materials required for production. The assembly partner then manages component placement, soldering, inspection and testing based on the agreed build specifications.
Altimex has more than 30 years of experience in PCB assembly and bespoke electronic manufacturing. From its Cheshire facility, the team produces surface mount, through-hole and mixed technology assemblies for sectors including aerospace, automotive, telecommunications, defence and maritime. Each project follows controlled assembly, inspection and testing procedures to maintain accuracy, traceability and consistent build quality.
Our Mixed Technology PCB Assembly Capabilities
Altimex combines surface mount and through-hole assembly processes to manufacture PCB assemblies containing a wide range of component types. Each stage is planned around the board layout, component requirements and expected production volume, supporting accurate assembly from prototypes through to repeat production.
Altimex uses automated surface mount assembly equipment for the accurate placement of compact and fine-pitch components. Controlled solder paste application, component placement and reflow soldering support consistent results across prototypes, low-volume batches and repeat production.
Through-hole components are inserted and soldered using controlled manual or automated processes. This method is suited to connectors, transformers, larger components and parts that require strong mechanical connections or additional support.
Surface mount and through-hole components are assembled on the same PCB using a planned production sequence. Our engineers review component placement, soldering requirements and thermal considerations to reduce manufacturing risks and maintain consistent assembly quality.
Mixed technology PCB assemblies are inspected throughout production using visual checks, automated inspection and testing options based on the project requirements. Work is completed in line with IPC-A-610 and IPC-J-STD-001 standards.

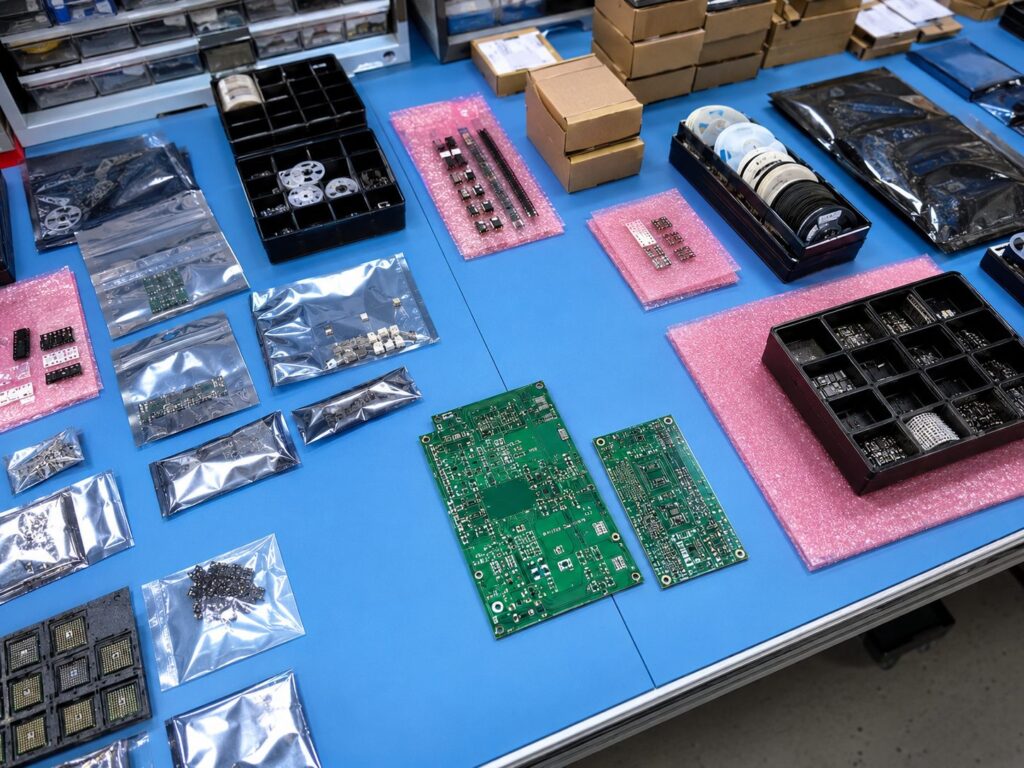

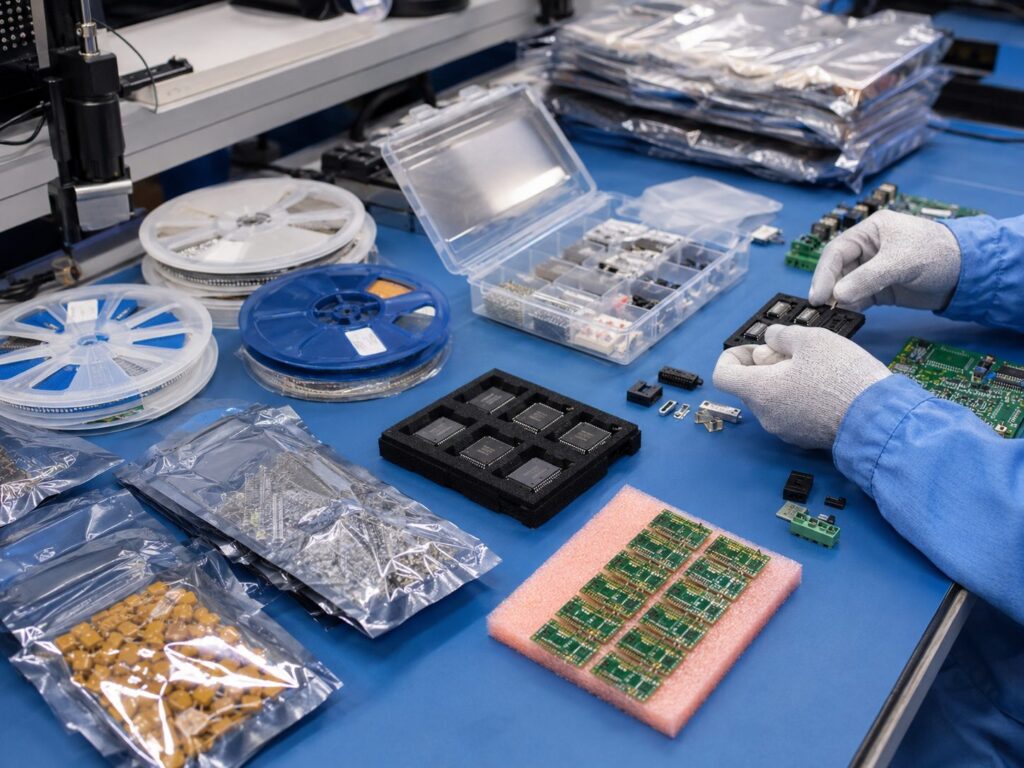

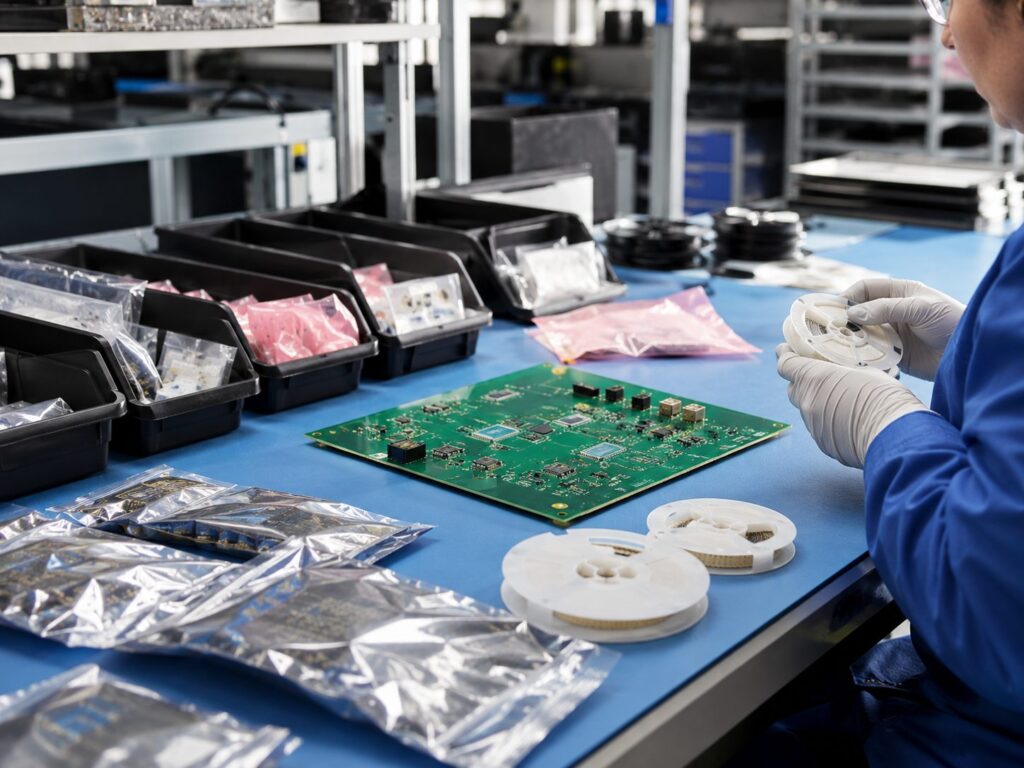

Customer-Supplied Components for Consigned PCB Assembly
Why Work With Altimex?
30+ Years Of Experience
Fast Turnaround Time
Tailored
Solutions
Building Long-Term Partnerships
Certified & Experienced Team
Our Consigned PCB Assembly Process
Altimex follows a controlled consigned PCB assembly process to maintain accuracy, traceability and consistent build quality. Each project is reviewed by experienced engineers, with production planned around the supplied boards, components, assembly data, required quantities and testing specification.
- PCB data and manufacturing review
- Bill of materials and supplied stock review
- Customer-supplied component verification
- Solder paste application
- Automated pick and place assembly
- Reflow soldering
- Through-hole component insertion and soldering
- Inspection and testing
- Final build review and reporting
Sectors we support.
Electronics manufacturing for applications where quality, reliability and consistent performance matter.
What Is Consigned PCB Assembly Used For?
Frequently Asked Questions
What is consigned PCB assembly?
Consigned PCB assembly is a service where the customer supplies some or all of the printed circuit boards, electronic components or materials. Altimex then manages assembly, soldering, inspection and testing.
What materials can customers supply?
Customers can provide bare printed circuit boards, surface mount components, through-hole components or selected specialist parts. Supplied materials are reviewed against the bill of materials before production begins.
Can Altimex source missing components?
Yes. Where agreed, Altimex can source component shortages or suitable alternatives. Any replacement parts are submitted for approval before being used in production.
Does Altimex check customer-supplied components?
Customer-supplied components are checked against the bill of materials, required quantities and assembly documentation. Any shortages, discrepancies or specification concerns are raised before assembly starts.
Which assembly methods are available?
Altimex supports surface mount, through-hole and mixed technology PCB assembly. The production method is selected based on the board design, component types and build requirements.
What production quantities can Altimex support?
Consigned PCB assembly can be used for prototypes, low-volume orders and repeat production. Project requirements, component availability and timescales are reviewed before a production plan is agreed.
Are consigned PCB assemblies inspected and tested?
Yes. Completed assemblies can undergo visual inspection, automated inspection and agreed testing procedures. The testing process is planned around the PCB design and project specification.
How does Altimex maintain component traceability?
Supplied components, production records and inspection results are documented throughout the assembly process. This creates a clear record of the materials used within each build.
